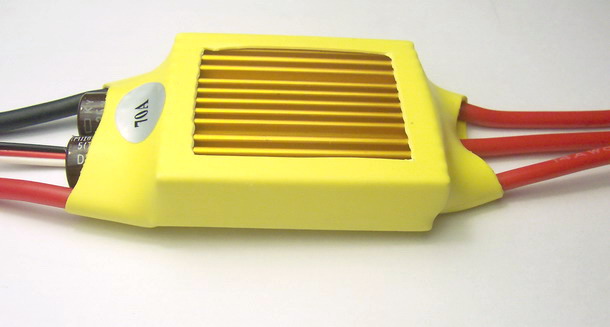

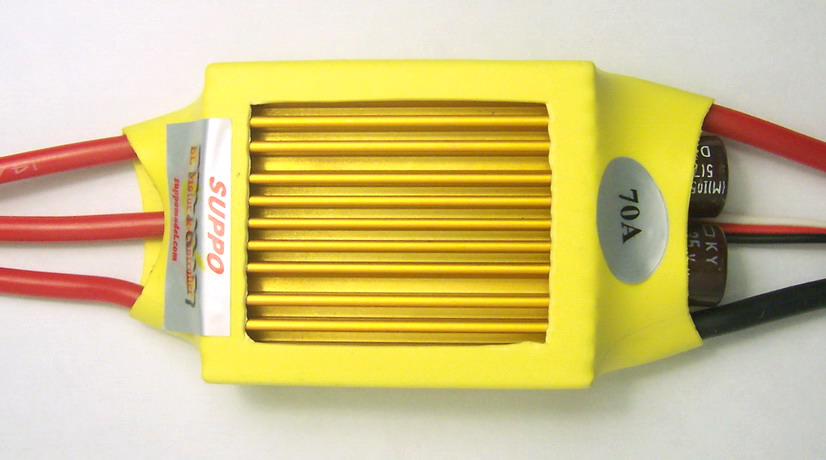

SUPPO ESC 70A

70A controller brushless motor

70a

Features

    • Constant current 70A Max 85A  <10s
    • Li-Poly 4-8 cells Ni-MH 12-24 cells
    • Low resistant 0.0017 ohms;
    •  Dynamic braking
    • BEC: OPTO
    • Auto shut down when lose signal
    • Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V Nimh

70A Specification

Cons

-Current

 Max

Current

BEC

Input

  TIMING

PWM

70A

80A

NO



7-21NIMH

~2-7S LIPO

Programmable-
1/7/15/30

programmable ĘC
8/16K



Weight

Size



55x35X8

User programming options:

    • Battery Setting
    • Throttle Range
    • Brake Setting 4 options:
    • Direction and Cutoff Type
    • Timing Mode Setting: 1º /7º /15º/30º
    • PWM  Setting: 8K/16K

    Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.
